Summit AMRAD One-Piece Portable X-Ray Machine

Portable Imaging Flexibility

The Summit AMRAD One-Piece Portable X-ray is designed for facilities that need dependable imaging outside of a traditional radiography suite. Combining high-frequency generator technology, standard power compatibility, and a compact transportable design, the system can be deployed wherever diagnostic X-ray imaging is needed.

Key Features

• Available with 4 kW or 8 kW generator output
• Operates on standard 110V or 220V single-phase power
• Lightweight 33 lb (15 kg) portable generator
• Optional folding stand and carrying case
• Compact design for mobile and field imaging

The ability to operate from standard electrical service allows the system to be used in a wide range of environments without requiring specialized power infrastructure.

Clinical Applications

Not every imaging environment supports a dedicated X-ray room. The One-Piece Portable X-ray provides diagnostic imaging flexibility for facilities that need to perform exams in multiple locations or temporary care environments.

Common Applications

• Orthopedic clinics
• Sports medicine practices
• Urgent care centers
• Veterinary facilities
• Mobile and outreach imaging programs

Its lightweight construction and straightforward setup make it particularly useful when imaging must be performed where a fixed radiography system is not practical.

High-Frequency Generator

The SPL-HF generator platform operates at 300 kHz to provide stable output and consistent image quality. Independent kVp and mAs selection gives technologists the flexibility to adjust techniques for a variety of examinations and patient sizes.

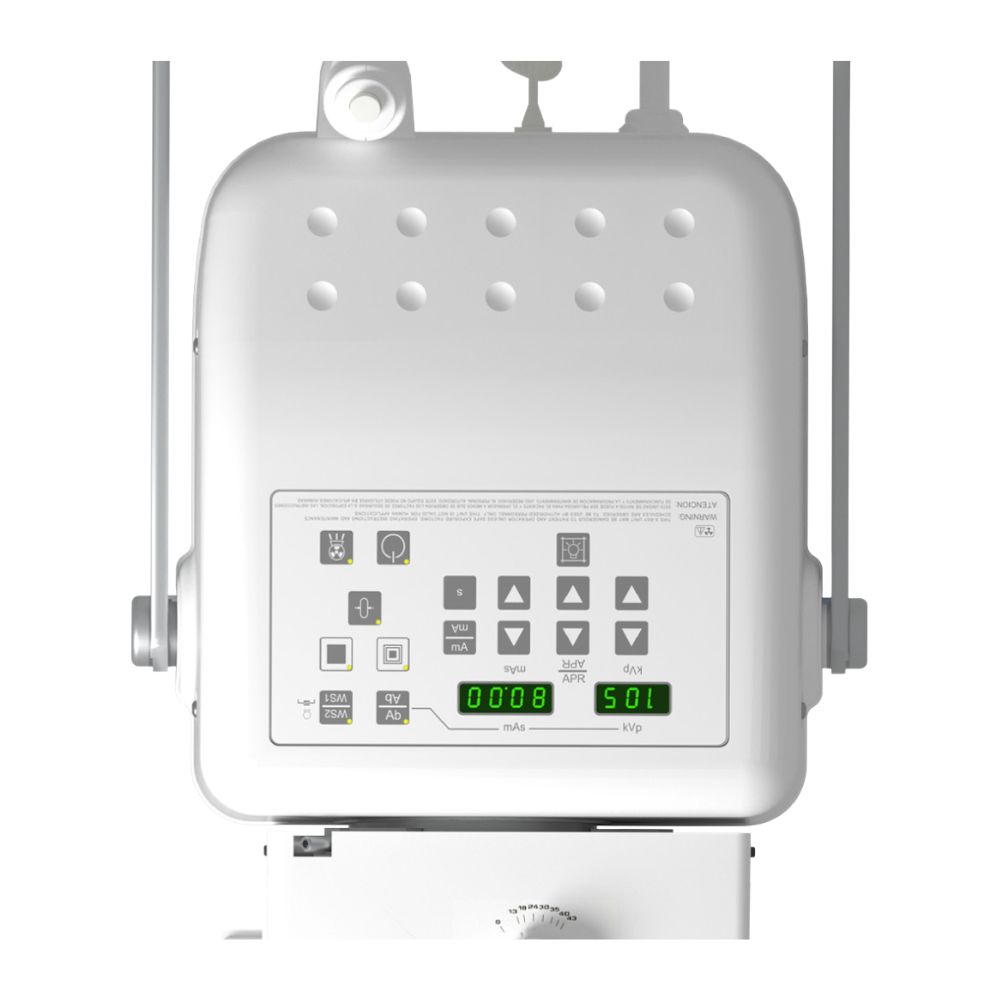

Exposure Controls

• 300 kHz high-frequency generator
• Two-point operation
• Independent kVp and mAs selection
• Automatic line regulation
• Automatic output adaptation to power line conditions

These controls help support consistent image quality while providing the flexibility needed for a broad range of radiographic procedures.

Portable Design

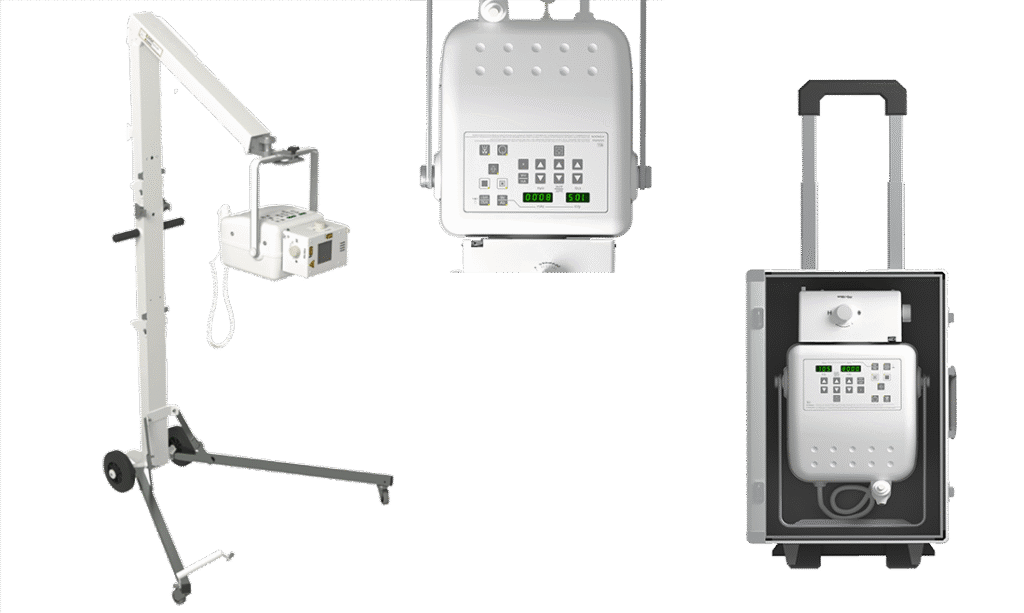

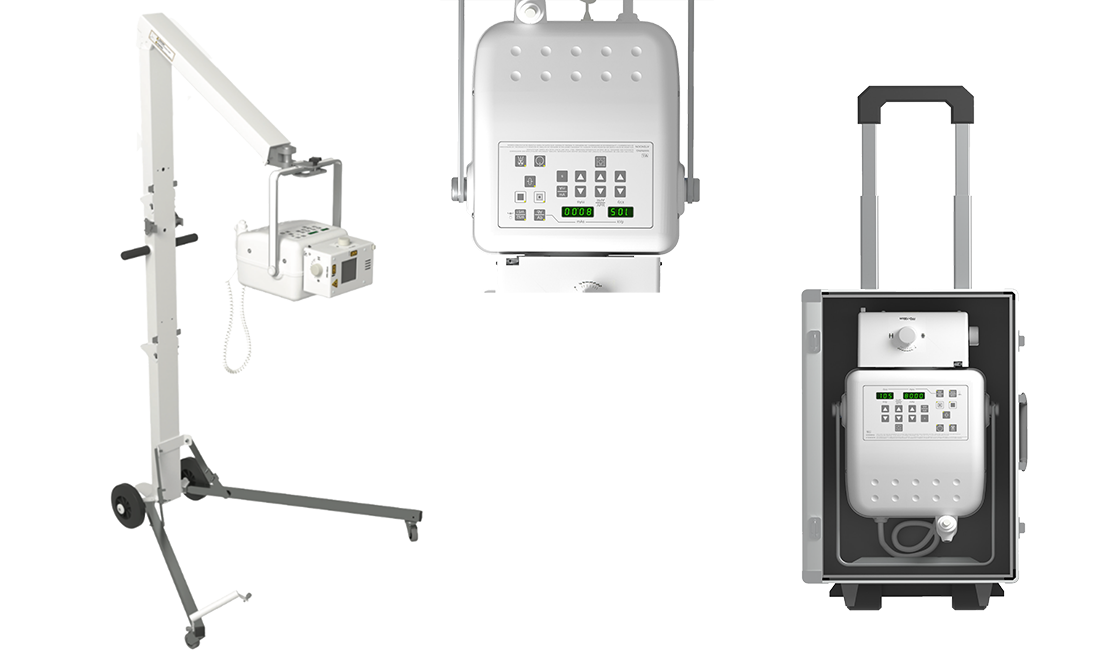

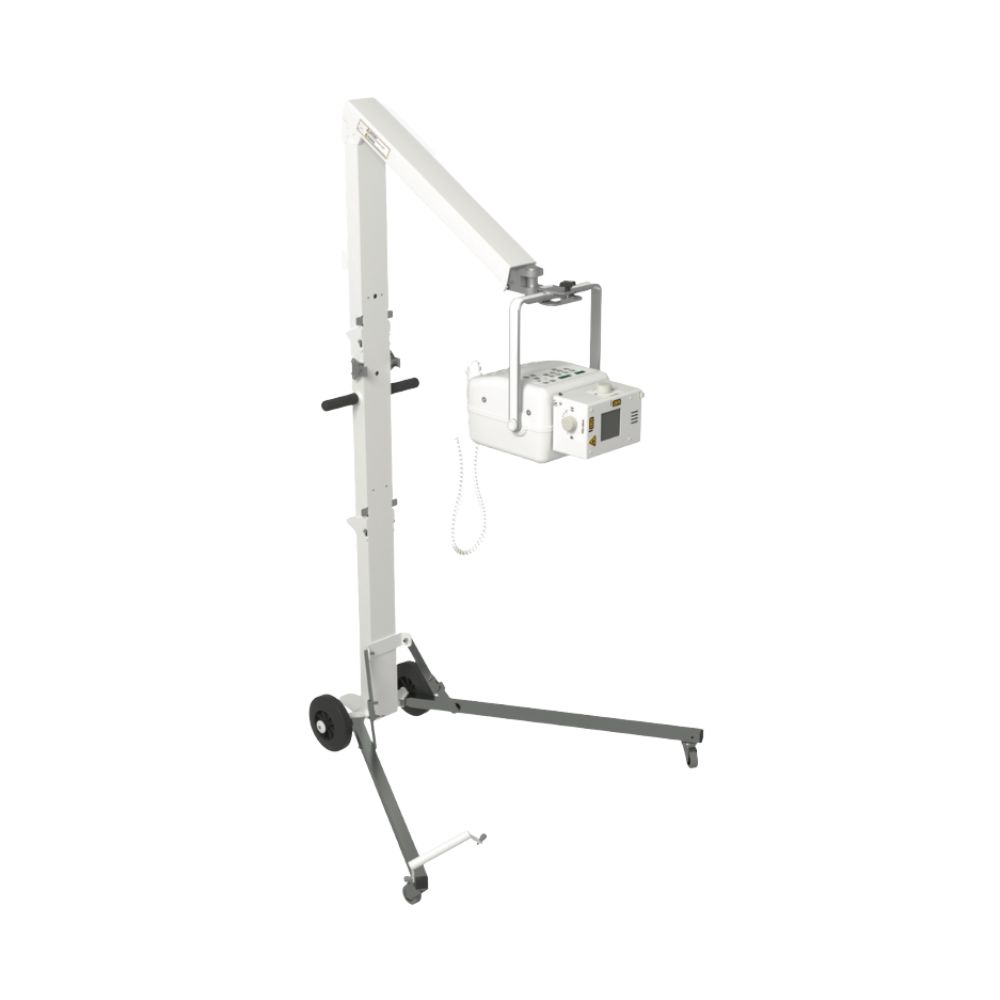

Designed for mobility, the One-Piece Portable X-ray can be transported between rooms, facilities, and imaging locations with minimal effort. The optional folding stand provides stable positioning during exams while maintaining a compact storage footprint.

Mobility Features

• Lightweight portable generator
• Folding stand design

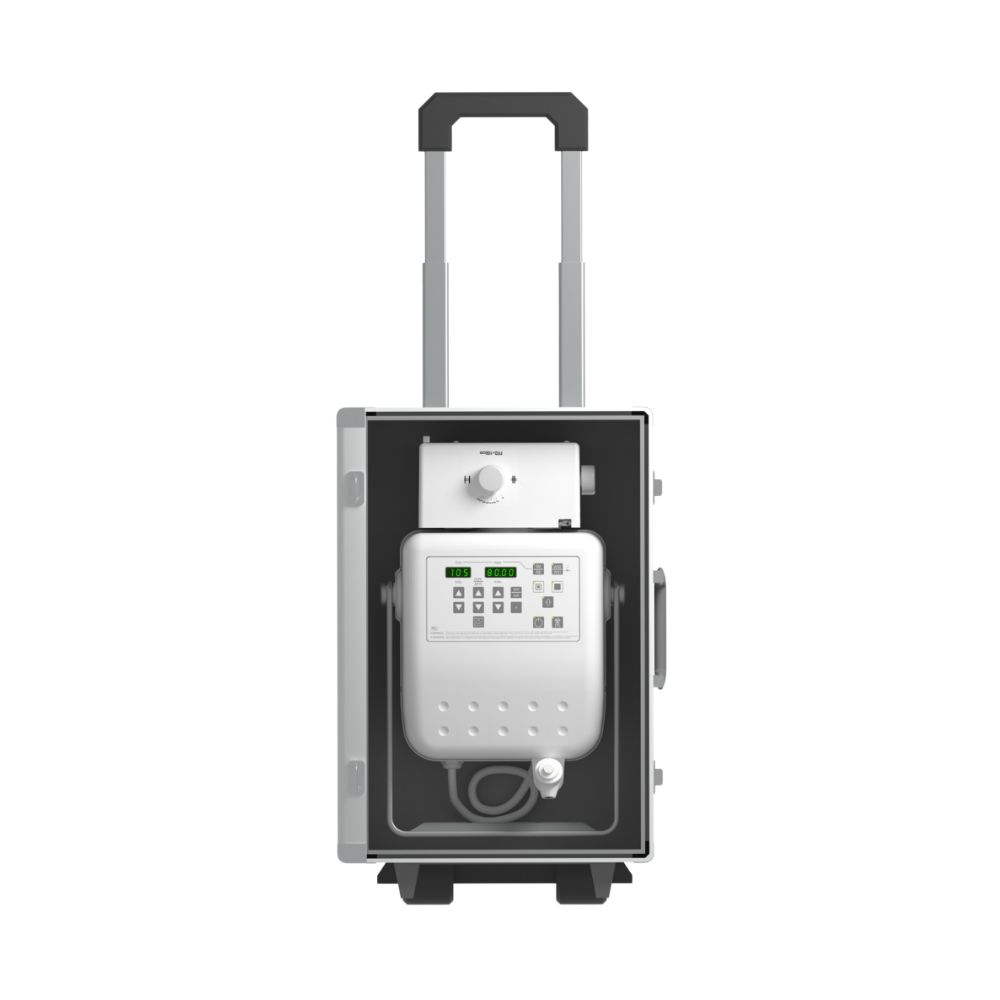

• Optional carrying case
• Compact storage and transport profile

Whether deployed in a clinic, satellite location, veterinary practice, or mobile imaging setting, the system is designed to simplify transport, setup, and storage.

X-ray Tube Features

The system incorporates a stationary anode X-ray tube with dual focal spots to support a range of general radiography procedures. Available 4 kW and 8 kW configurations allow facilities to select the output level that best fits their clinical requirements.

Tube Specifications

• Dual focal spot design
• 14° target angle
• Up to 76,000 HU anode heat storage capacity
• Optional laser light collimator

Combined with high-frequency generator technology, these features support consistent image quality across routine radiographic examinations.

Specifications

SPL-HF-4.0

• • Generator Output: 4.0 kW
    kVp Range: 40-125 kVp
    Focal Spots: 0.6 mm / 1.5 mm
    Anode Heat Storage: 40,000 HU

SPL-HF-8.0

• • Generator Output: 8.0 kW
    kVp Range: 40-125 kVp
    Focal Spots: 0.6 mm / 2.8 mm
    Anode Heat Storage: 76,000 HU

Generator Specifications

• • High Frequency Ripple: 300 kHz
  • kVp Range: 40-125 kVp
  • kVp Accuracy: ±5%
  • Exposure Time Range: 0.001-10 seconds
  • mAs Range: 0.1-250 mAs
  • mAs Accuracy: 5%
  • Number of Exposure Stations: 41
  • Number of mAs Stations: 34
  • Optional APR: 1 Region

Power Requirements

SPL-HF-4.0

• • • 110 VAC
    • 35 amps at full power
    • 50/60 Hz operation

SPL-HF-8.0

• • • 220 VAC
    • 20 amps at full power
    • 50/60 Hz operation

Physical Specifications

• • Generator Weight: 33 lbs (15 kg)
  • Folding Stand Weight: 61.7 lbs (28 kg)
  • Power Cord Length: 19.7 ft (6 m)
  • Exposure Cord Length: 9.8 ft (3 m)
