X-Cel Podiatry Imaging Systems

X-Cel X-Ray Corporation manufactures a complete line of high-frequency and adjustable kVp. X-Ray units for podiatrists, orthopaedics, and industrial use. They are proud of their commitment to use American-made products and materials in the manufacturing of their products.

The newest easy-to-use feature is the patented Tilt-Head, which enables the user to tilt the X-Ray source.

Tilt-Head units:

• Eliminate the need to rotate the patient for the DP view
• Eliminate the need to rotate the arm for the AP view
• Eliminate the need to readjust the collimator lateral views
• Enable wheelchair patients to be easily accommodated without having to leave the wheelchair
• Feature the low voltage expose switch with optional remote key box
• Include features that can meet ADA guidelines (consult your accountant)

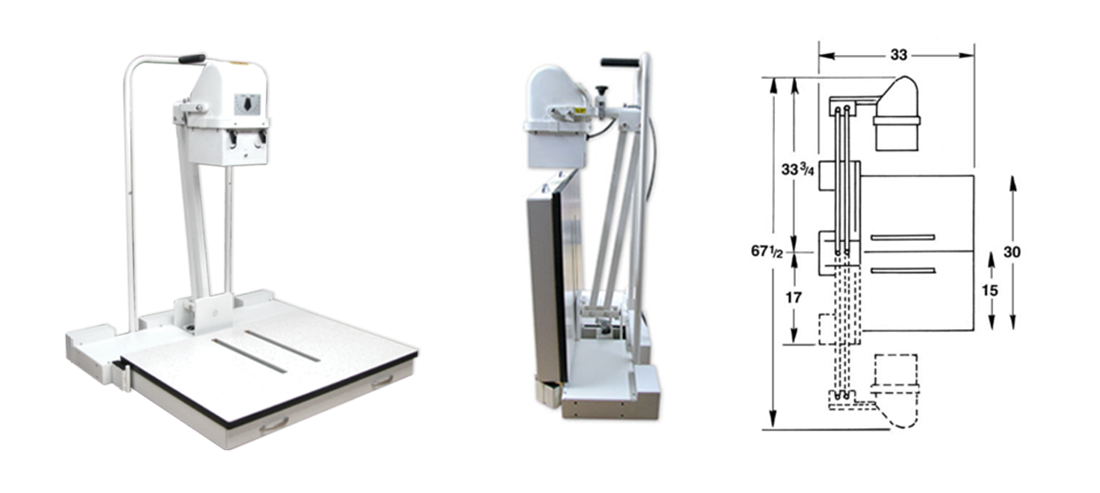

FB-715NT

• 28" SID
• Saves floor space
• 3.5" base height
• Fits between wall and chair
• Minimum space required: 34" x 51"
• Both laterals possible
• Folds to 18 inches wide
• 15 mA
• 50-70 kVp
• Available in white

715-BD Series

• Patient support rail allows access from side or front

• 3.5" base height

• 29" SID

• Available in white

MB-715NT

• ​28" SID

• Space saver

• Both laterals possible

• 6" base
