AMRAD Medical by Summit Aptitude R/F System

Integrated Radiography & Fluoroscopy in One R/F Room

The AMRAD Medical Aptitude R/F System combines digital radiography, continuous and pulsed fluoroscopy, motorized table movement, and protocol-driven positioning in one integrated room. It supports a broad range of general radiographic and fluoroscopic procedures while helping facilities use one R/F suite for multiple imaging needs.

A flat carbon-fiber tabletop facilitates patient transfer and positioning. The table tilts from +90° to -25°, while motorized height, lateral, and longitudinal travel help the technologist align the patient, X-ray tube, and detector across horizontal, upright, and angled examinations.

Key Benefits

• • Remote-controlled radiography and fluoroscopy in one integrated system
  • Motorized +90°/-25° table tilt for horizontal, upright, and angled positioning
  • Integrated 17 x 17 in (43 x 43 cm) TRIXELL-FL flat panel detector for radiography and fluoroscopy
  • Motorized auto-positioning based on selected anatomical protocols
  • Bariatric-capable tabletop rated to 507 lb (230 kg) without movement limitations
  • Automatic collimation, programmable filtration, patient camera, AEC, and dose-area-product measurement
  • Optional stitching, additional wireless detectors, DSA, and tomosynthesis capabilities

For facilities evaluating a used AMRAD Aptitude R/F System, the installed detector, generator, software, accessories, service history, and site requirements should be reviewed before purchase. MXR Imaging can help assess the available configuration, coordinate installation or relocation, and support the equipment after deployment.

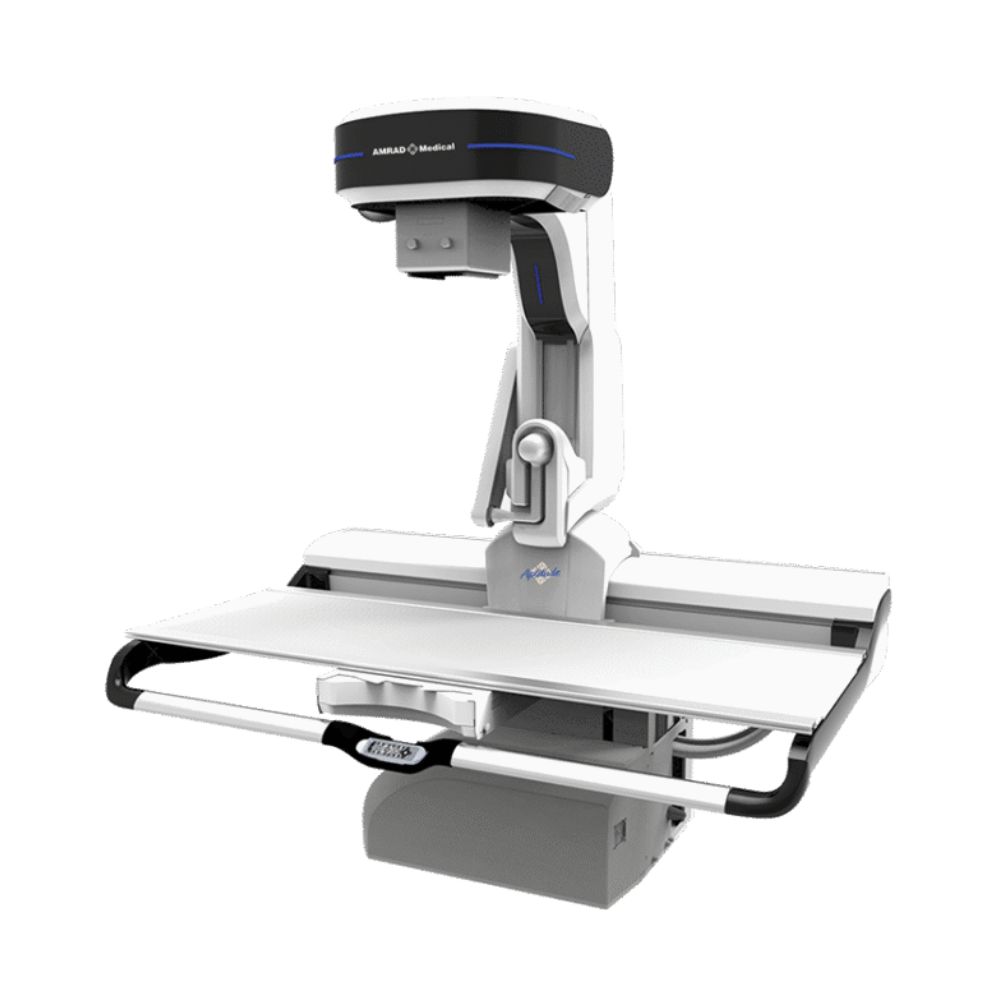

Core Aptitude R/F System Components

• • Remote-controlled R/F table with a flat tabletop to facilitate patient positioning and transfer
  • Angling column with automatic collimation and integrated dose-area-product measurement
  • Integrated TRIXELL 4343 detector with integrated electronics that reduce separate cabinet requirements
  • Main console with table controls, generator interface, patient camera, acquisition controls, and auto-positioning
  • Optional secondary mobile console that mirrors most main-table controls

These components work together through the main console, allowing the technologist to manage positioning, generator settings, collimation, patient visualization, and image acquisition from a centralized interface.



How Does the AMRAD Aptitude Expand R/F Room Capability?

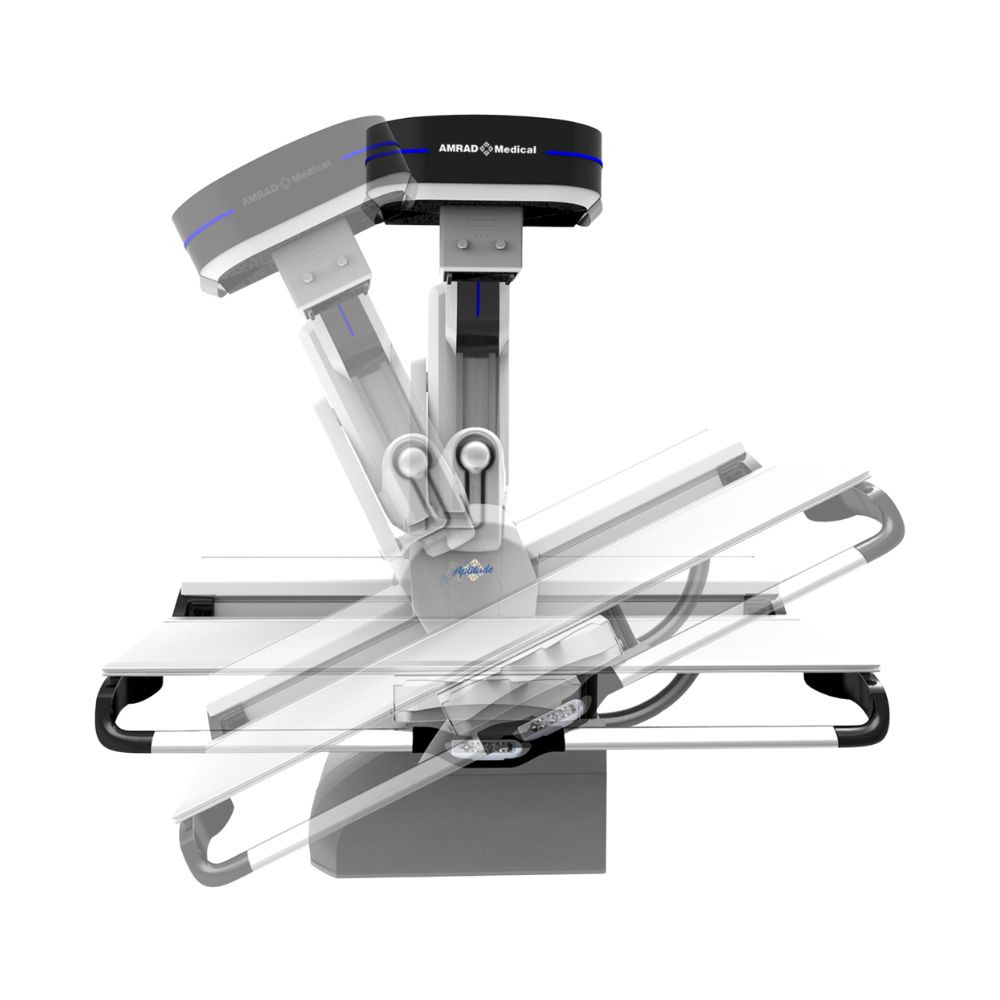

+90°/-25° Table Tilt Supports Multiple Exam Positions

The motorized table tilts to +90° for upright studies and to -25° for angled positioning. With the table vertical, the tube can also be rotated for stretcher or wall-bucky exposures, helping the room accommodate patients who cannot be positioned for a conventional tabletop exam.

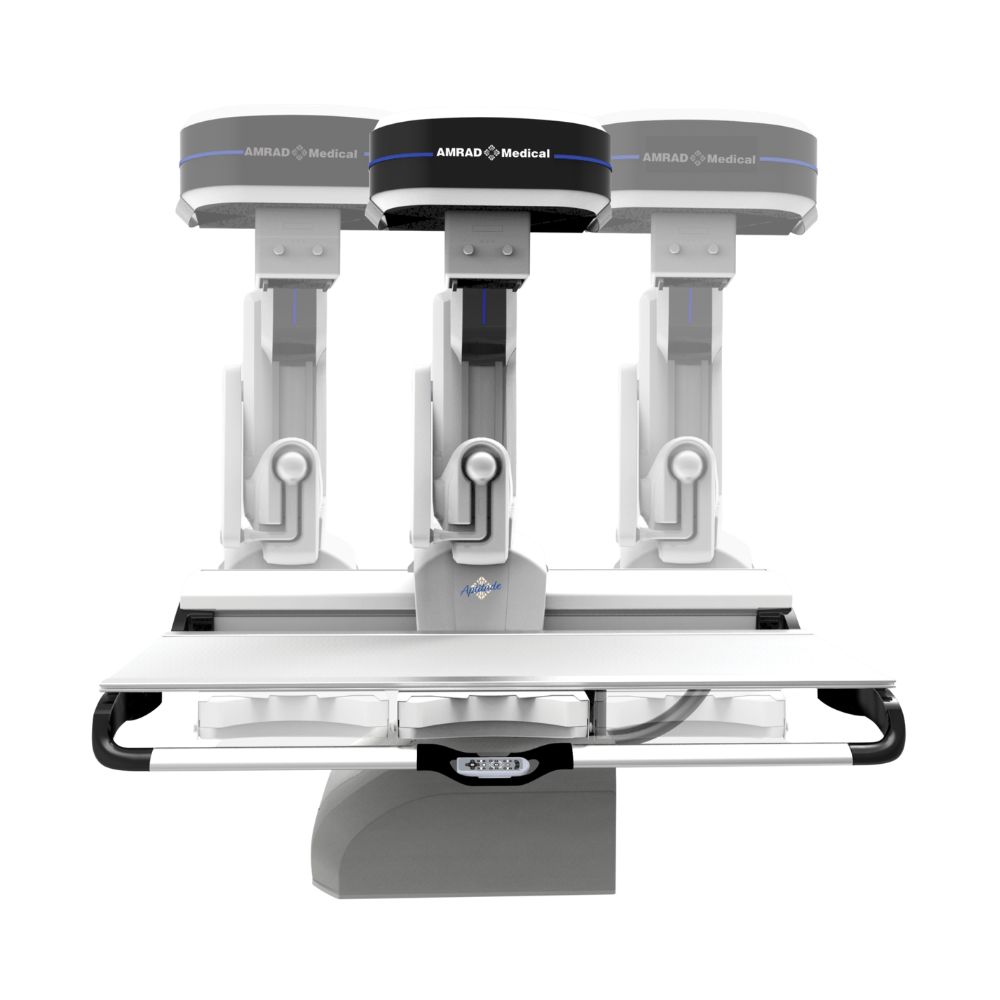

Broad Patient Coverage Without Repeated Manual Repositioning

Motorized table height, tabletop travel, detector travel, tube angulation, and variable source-image distance provide extensive anatomical coverage. The detector support travels 53.1 in (135 cm), and the system covers the full tabletop together with its lateral and longitudinal movements.

Flat Tabletop Supports Transfer and Bariatric Positioning

The 88.5 x 31.9 in (225 x 81 cm) carbon-fiber tabletop provides a wide positioning surface with integrated patient rails. It supports up to 507 lb (230 kg) without movement limitations and up to 683 lb (310 kg) with some movement limitations, subject to the system configuration and applicable operating guidance.

Integrated Electronics Simplify Room Planning

Detector electronics are integrated into the TRIXELL 4343 detector assembly, and the table cabinet is integrated into the system. This consolidated architecture reduces the number of separate equipment cabinets that must be accommodated within the R/F room.



AMRAD Aptitude R/F Clinical Environments & Applications

The AMRAD Aptitude R/F System is suited to fixed imaging suites that need both general radiography and fluoroscopy. Procedure availability depends on the installed detector, software licenses, accessories, clinical protocols, and facility credentialing requirements.

Healthcare Environments

The system is most relevant to fixed imaging suites with the space, electrical service, shielding, and clinical staffing required for remote-controlled R/F imaging.

• • Hospital radiology departments
  • Outpatient diagnostic imaging centers
  • Fluoroscopy and gastrointestinal imaging suites
  • Orthopedic imaging departments
  • Urology departments and clinics
  • Speech and swallowing evaluation programs

Radiography Applications

The large-format detector and motorized positioning support routine general radiography as well as exams that benefit from table tilt, extended coverage, or optional stitching.

• • General skeletal radiography
  • Chest and abdominal radiography
  • Orthopedic and weight-bearing examinations
  • Stretcher and wall-bucky imaging with the table in the vertical position
  • Long-length imaging with optional stitching software and positioning accessories

Fluoroscopy Applications

Continuous and pulsed fluoroscopy modes support real-time visualization for contrast studies and image-guided procedures within the capabilities of the installed configuration.

• • Digestive and gastrointestinal studies
  • Urinary tract studies
  • Swallowing and speech pathology studies
  • Vascular and cardiovascular procedures supported by the installed configuration and clinical protocols
  • Interventional guidance applications supported by the installed configuration and facility protocols



How Does the AMRAD Aptitude R/F Workflow Operate?

Protocol-Driven Auto-Positioning

The technologist selects a programmed protocol at the acquisition console. The selected table and generator parameters are transmitted to the table console, where the MOVE command automatically positions the tabletop, column angulation, source-image distance, collimation, filtration, and lateral or longitudinal travel. A readiness message appears when the programmed position is reached.

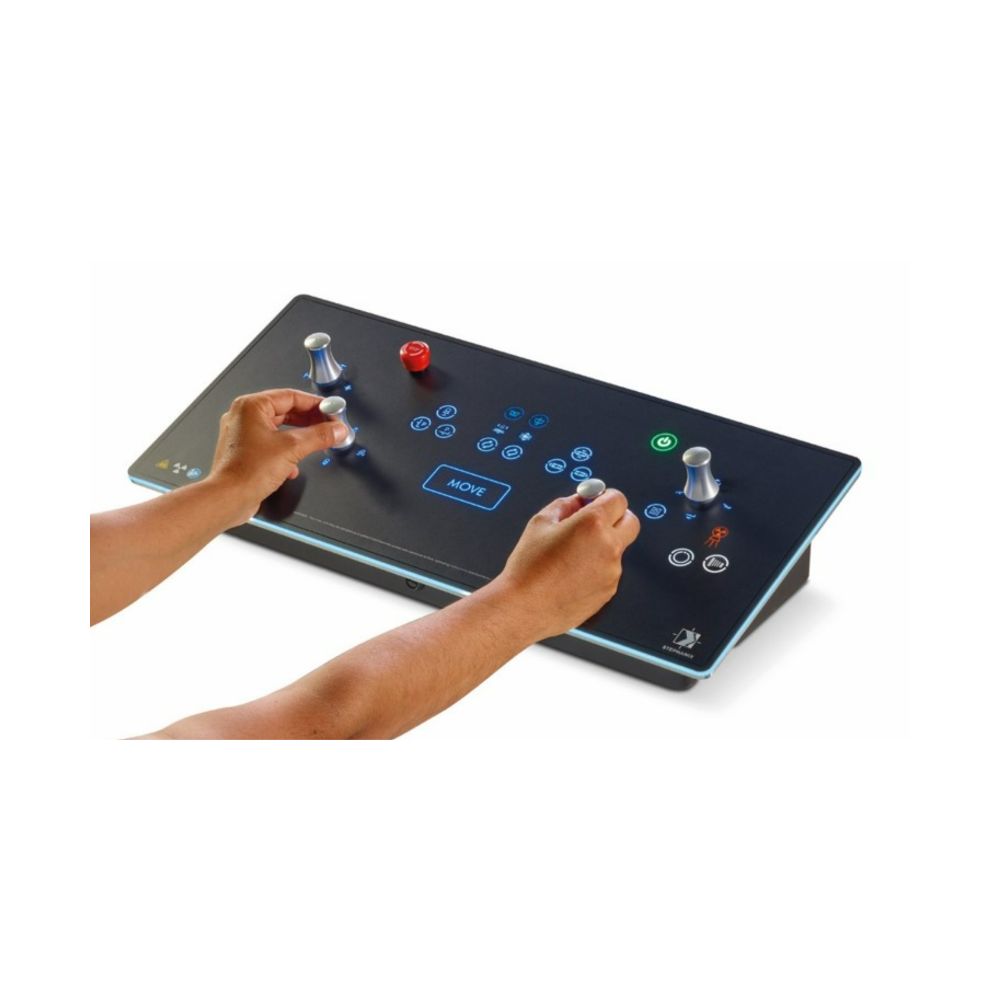

Centralized Main Console Controls

The main console combines capacitive keys, joysticks, and a touchscreen for table movement, generator settings, protocol selection, auto-positioning, patient-camera images, preparation, and exposure. An infrared remote provides access to major system functions, and an optional secondary mobile console can mirror most main-table controls.

Patient Camera Supports Positioning Without Fluoroscopy

A video camera allows the technologist to view patient positioning at the main console before irradiation. This supports alignment while automatic collimation and programmable filtration apply protocol-based settings for the selected anatomy and imaging mode.

Integrated Image Review & Network Distribution

The acquisition console supports image review, windowing, magnification, measurements, annotations, rotation, image reversal, and multi-image display. DICOM 3.0 functions include Store, Worklist, Print, and MPPS, with additional connectivity functions available as options.



AMRAD Aptitude Imaging, Positioning & Dose Technologies

TRIXELL 4343 Dynamic Flat Panel Detector

The integrated amorphous-silicon detector uses a cesium iodide scintillator and provides a 16.8 x 16.8 in (42.6 x 42.6 cm) active area. It supports digital radiography, continuous fluoroscopy, and pulsed fluoroscopy in multiple selectable field formats.

65 kW High-Frequency Generator

The standard 65 kW high-frequency generator uses inverter technology with IGBT circuits. An 80 kW generator was offered as an optional upgrade. The generator supports radiographic operation from 40 to 150 kV and fluoroscopic operation from 40 to 120 kV.

Automatic Exposure Control and DAP Tracking

A three-field ionization chamber provides automatic exposure control for selected radiographic techniques. An integrated dose-area-product measuring system records dose information for individual exposures or the complete study at the acquisition console.

Automatic Collimation and Programmable Filtration

The motorized collimator automatically adjusts to detector format, anatomical protocol, auto-positioning, and the selected fluoroscopic field. Protocol-specific filtration can be programmed, while manual shutter adjustment remains available from the console, hand switch, or collimator.

Compression and Anti-Collision Safeguards

The retractable motorized compression device can apply up to 200 N of compression. System interlocks prevent tabletop, carriage, or angulation movement when compression exceeds 60 N. Software-controlled motion limits and anti-collision functions support programmed positioning within the installed room layout.



Pre-Owned AMRAD Aptitude R/F Systems & Installed-Base Support

The original Aptitude has been succeeded by the AMRAD Aptitude Plus, but it remains relevant for facilities evaluating used R/F equipment and organizations supporting an installed system. Each unit should be reviewed individually for detector performance, generator configuration, software, accessories, tube condition, service history, and site requirements.

Used Equipment Availability

Contact MXR to discuss current availability of used AMRAD Aptitude R/F systems. Inventory and configuration are subject to change, and available equipment may differ in generator power, software options, accessories, detector configuration, and cosmetic condition.

Product-Specific Service, Parts & Relocation Support

MXR can support equipment evaluation, de-installation, transportation, room planning, installation, preventive maintenance, and repair for the Aptitude R/F System. Service scope and parts availability should be confirmed using the system serial number and installed configuration.



Is the Aptitude Plus a Better Fit for a New R/F Room?

Facilities planning a new R/F room or considering a current-generation system should also review the AMRAD Medical by Summit Aptitude Plus R/F System. The Plus model adds a +90°/-90° tilt range and a lower patient-transfer position, while this page remains focused on the earlier +90°/-25° Aptitude configuration.

Learn more about the AMRAD Medical by Summit Aptitude Plus R/F System.



Request Information About the AMRAD Medical Aptitude R/F System

Contact MXR Imaging to discuss used-system availability, equipment evaluation, installation planning, detector and tube condition, service, parts, relocation, or replacement options. Providing the system serial number, current configuration, software version, and service history helps identify the most appropriate next step.

• Used AMRAD Aptitude R/F equipment
• System inspection and configuration review
• De-installation, relocation, and installation planning
• Preventive maintenance and repair
• Replacement parts and component support
• Comparison with the AMRAD Medical by Summit Aptitude Plus R/F System





---

AMRAD Medical Aptitude R/F System Specifications

Specifications may vary by production date, installed options, software version, and the configuration of an individual used system. Confirm the specific system configuration, utilities, and installation requirements before purchase.

System Configuration

• • Remote-controlled radiography and fluoroscopy system
  • Integrated TRIXELL 4343 RF-FL dynamic flat panel detector
  • Motorized tilting table with angling column
  • Automatic collimation and integrated dose-area-product measurement
  • Main control console with generator interface, patient camera, and auto-positioning controls
  • Standard infrared remote control
  • Optional secondary mobile console

Patient Table

• • Tabletop dimensions: 88.5 x 31.9 in (225 x 81 cm)
  • Variable height: 25 to 36.6 in (64 to 93 cm)
  • Motorized table tilt: +90°/-25°
  • Lateral tabletop travel: +/-7 in (+/-18 cm)
  • Longitudinal tabletop travel: +47.2/-23.6 in (+120/-60 cm)
  • Patient capacity: 507 lb (230 kg) without movement limitations
  • Maximum patient capacity: 683 lb (310 kg) with some movement limitations
  • Composite footrest capacity: 507 lb (230 kg)

Tube & Detector Positioning

• • Detector longitudinal movement: 53.1 in (135 cm)
  • Motorized tube-support angulation: +/-40°
  • Source-image distance: 43.3 to 70.9 in (110 to 180 cm)
  • Manual tube rotation: +/-180°
  • Removable 10:1 carbon-fiber grids
  • Grid focal distances: 49.2 in (125 cm) and 70.9 in (180 cm)

Generator & X-Ray Tube

• • Standard generator output: 65 kW
  • Optional generator output: 80 kW
  • Radiography range: 40 to 150 kV
  • Radiographic current range: 10 to 650 mA
  • Exposure range: 0.1 to 500 mAs
  • Fluoroscopy range: 40 to 120 kV
  • Fluoroscopy current: 0.5 to 5 mA in low-dose mode and up to 7 mA in higher-dose mode
  • Focal spots: 0.6 and 1.2 mm
  • Up to 9,989 customizable anatomical protocols

TRIXELL 4343 RF-FL Detector

• • Detector type: amorphous silicon with cesium iodide scintillator
  • Nominal detector format: 17 x 17 in (43 x 43 cm)
  • Active area: 16.8 x 16.8 in (42.6 x 42.6 cm)
  • Radiography matrix: 2,840 x 2,874 pixels
  • Pixel size: 148 micrometers
  • Supports digital radiography, continuous fluoroscopy, and pulsed fluoroscopy
  • Fluoroscopy capability: up to 30 frames per second, depending on the selected field and mode

Imaging, Dose Management & Connectivity

• • Automatic exposure control with three sensor fields
  • Integrated dose-area-product measurement
  • Auto-positioning based on programmed examination protocols
  • Image processing, windowing, magnification, measurements, annotations, and electronic collimation
  • 24 in touchscreen acquisition monitor
  • DICOM 3.0 Store, Worklist, Print, and MPPS
  • Optional DICOM Storage Commitment, Query/Retrieve, and Structured Reporting

Available Options

• • Additional 14 x 17 in or 10 x 12 in wireless flat panel detector
  • Automatic stitching
  • Digital subtraction angiography
  • Tomosynthesis
  • Ceiling tube stand
  • Additional positioning and procedural accessories

Dimensions, Weight & Utilities

• • Minimum table configuration: 89 x 92.5 x 74.4 in (226 x 235 x 189 cm)
  • Approximate table weight: 3,527 lb (1,600 kg)
  • Generator power: 400/480 VAC, three-phase, 50/60 Hz
  • Table power: 400/480 VAC, three-phase, 50/60 Hz
  • Digital detector system power: 120/230 VAC, single-phase, 50/60 Hz
  • Operating temperature: 50°F to 95°F (10°C to 35°C)

Site planning, structural support, shielding, electrical service, room clearances, and local-code requirements must be evaluated for the proposed installation.
